What is for?

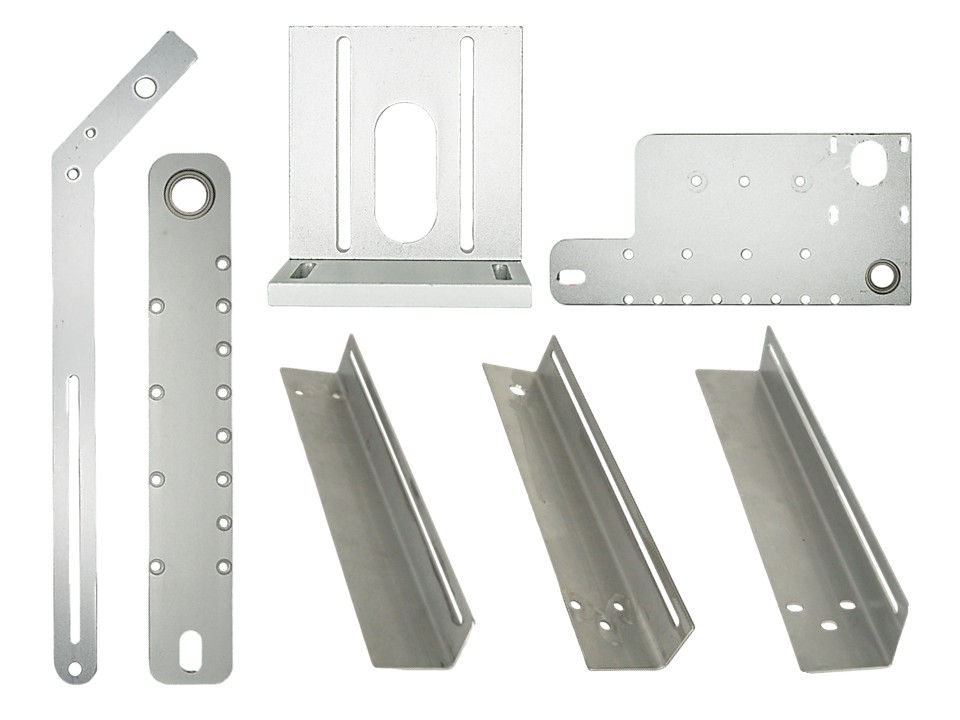

High quality products. Get better performance for your Labeling Machines.
Material = Aluminum

Label Machine Bracket A #51811
A = 118 mm
B = 365 mm
C = 181 mm
D = 7 mm
E (diameter) = 7 mm
F = M6 – 1.0
G = 14 mm
H = M6 – 1.0
I = 7 mm

Label Machine Bracket B #51835
A = 15  mm
B = 30 mm
C = 7 mm, hole diameter
D = 405 mm
E = 7 mm
F = 25 mm
G = 42 mm
H = 60.5 mm
Thickness = 12.5 mm

Label Machine Bracket C #51866
A = 28.8 mm
B = 7 mm
C = 66 mm
D = 127 mm
E = 110 mm
F (thickness) = 12 mm
G = 110 mm
H = 80.5 mm
I = 47 mm
J = 7.5 mm
K = M5 – 0.8

Label Machine Bracket D #51897
A = 405 mm
B = 290 mm
C = 180 mm
D = 7 mm
E = 38 mm
F = 48 mm
G = 18 mm
H = 42 mm
I = 25 mm
J = 30 mm
K = 15 mm
L = 7 mm
M = 90 mm
N = 6 mm
O = 10 mm
P = 6 mm

Label Machine Bracket E
A (diameter) = 7.5 mm
B = 300 mm
C = 280 mm
D = 6 mm
E = 50 mm
F = 40 mm

Label Machine Bracket F #51941
A (diameter) = 14 mm
B = 300 mm
C = 280 mm
D = 40 mm
E = 6 mm
F = 7 mm
G = 50 mm

Label Machine Bracket G #51972
A = 50 mm
B = 300
C = 280
D = 40 mm
E = 6 mm
F = 10 mm
G = 7 mm
